View In:   ArcGIS Online Map Viewer

Name: Network Rail Ownership

Display Field: TENURE

Type: Feature Layer

Geometry Type: esriGeometryPolygon

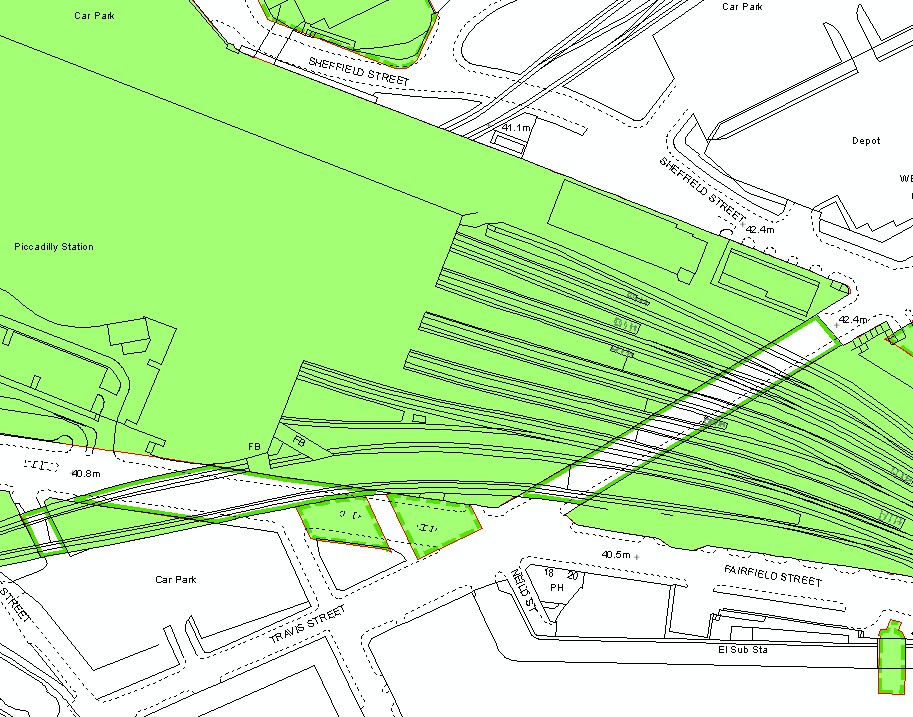

Description: Network Rail Freehold and Leasehold data for the entire rail infrastructure from historic and Current Surveys, Title Deeds and Archived Records, Land Transactions.

Service Item Id: 3ced624d75ca4237b37e79dfb6ebd639

Copyright Text: The Ownership data was originally captured from historic Land Records. The original Land Records were based on original title deeds, Muniment volumes and associated documentation, in 2001. The Ownership data is captured against Ordnance Survey mapping and it is not possible for Ordnance Survey to replicate the exact position of each physical feature on the ground. The ownership boundaries may follow historic ground features which may or may not still exist and may or may not coincide with modern Ordnance Survey mapping. This layer is maintained by Land Information Services who can be contacted using the following email address - LandInformation@networkrail.co.uk. Upload frequency - Daily Coordinate system - British National Grid Projection - Traverse Mercator Spatial Resolution - 0.002

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 461851.64159999974
YMin: 178359.38000000082
XMax: 505986.7944
YMax: 233361.12409999967
Spatial Reference: 27700  (27700)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [187, 184, 252, 255]
Outline:
Style: esriSLSSolid
Color: [110, 110, 110, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• TENURE ( type: esriFieldTypeString, alias: TENURE, editable: true, nullable: true, length: 100, defaultValue: null, modelName: TENURE )
• BUFF_DIST ( type: esriFieldTypeDouble, alias: BUFF_DIST, editable: true, nullable: true, defaultValue: null, modelName: BUFF_DIST )
• ORIG_FID ( type: esriFieldTypeInteger, alias: ORIG_FID, editable: true, nullable: true, defaultValue: null, modelName: ORIG_FID )
• Shape__Area ( type: esriFieldTypeDouble, alias: SHAPE.STArea(), editable: false, nullable: true, defaultValue: null, modelName: SHAPE.STArea() )
• Shape__Length ( type: esriFieldTypeDouble, alias: SHAPE.STLength(), editable: false, nullable: true, defaultValue: null, modelName: SHAPE.STLength() )

Templates:

• Name: Network Rail Ownership
  Description:
  Prototype:
  ORIG_FID: null
  TENURE: null
  BUFF_DIST: null

  Drawing Tool: esriFeatureEditToolPolygon

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
